KP .30

VACUUM WASHERS

MODIFIED ALCOHOLS - HYDROCARBONS - ULTRASOUNDS

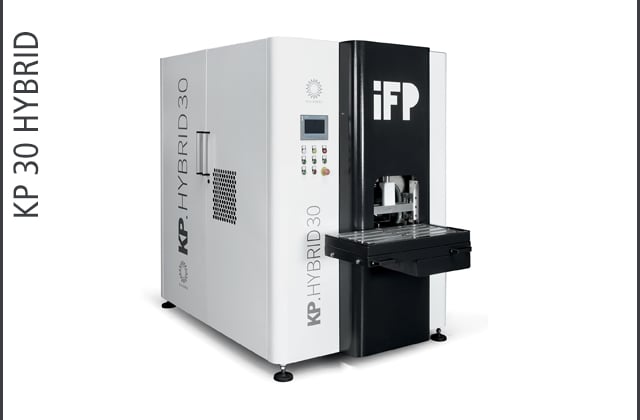

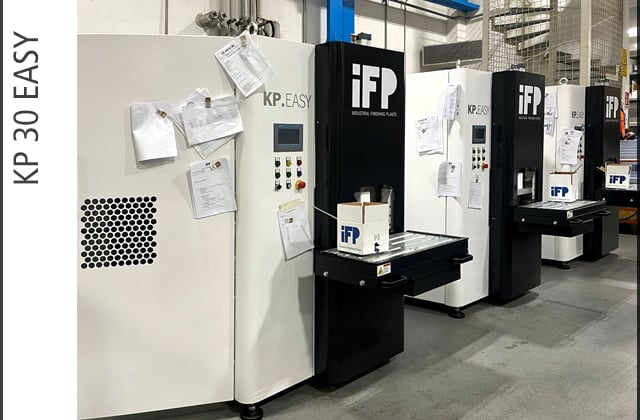

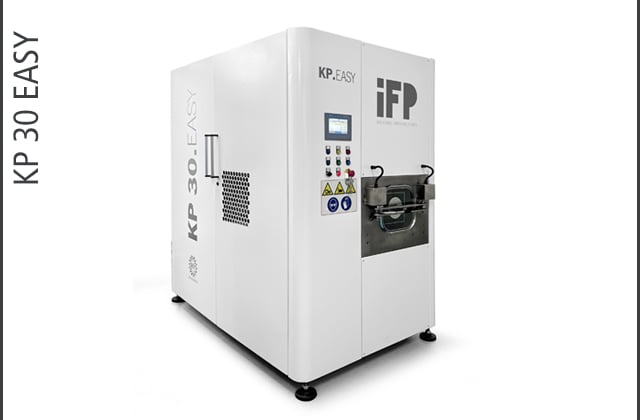

KP 30

The smallest version. The KP 30 is a compact washer that ensures effective degreasing of metals and high production efficiency with low energy consumption.

Quiet and requiring minimal maintenance, it provides a safe and comfortable working environment. The Simatic HMI touch panel allows for the management of all vacuum washing cycles, remote control, and maintenance.

The KP 30 version is ideal for small laboratories or spaces that are not too large.

Its "green technology" makes it easy to integrate even in smaller laboratories or limited spaces.

KP.30

Applications

Turned mechanical hardware
Heat exchangers
Precision mechanical hardware
Automotive
Die-casting
Sintered components
Bent items
Gears
Hydraulic components
Cutlery
Valves
Pots and pans
Fittings
Watches
Taps
Jewellery

The KP30 Line stands out for its numerous strengths:

The KP Kleen Power system complies with Industry 4.0 standards, MOCA, ISO 16232, and VDA 19 regulations.
The KP Kleen Power metal washing system is easily configurable with additional accessories, such as: custom basket loading automation, robotised basket loading systems, additional drying systems for metal parts, protective coating application systems for washed components, and the option to integrate the system into a clean-room environment.
The washing system is constructed entirely from stainless steel (INOX).
Designed for easy access, ensuring safe and efficient routine maintenance.
Closed-loop system prevents direct contact with washing liquids.
High-quality components, either original or refurbished, with IFP Europe warranty.
High-performance cleaning cycles, fully customisable with a tailor-made software system developed by IFP Europe experts.
No hazardous waste: Advanced filtration, purification, and stripping technology allows for the separation and recovery of oils, water, and metal microparticles (chips) from washed components.
Energy savings by means of optimised washing cycles.
No production downtime due to routine maintenance.
Remote monitoring and assistance available for system control and troubleshooting.

99% waste material recovery, 40% energy savings, and 95% reduction in cleaning product usage. Lower operational costs and significant economic benefits.

Load dimensions

Load weight

Encumbrance

Cycles/hour

KP 30

Load dimensions

200 x 300 x 150h

Load weight

Encumbrance

1300 x 2000 x 2000h

Cycles/hour

4 – 6

Available with manual and automatic loading options.

Find out more about automations

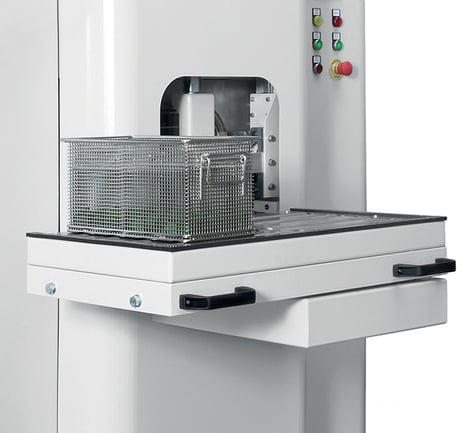

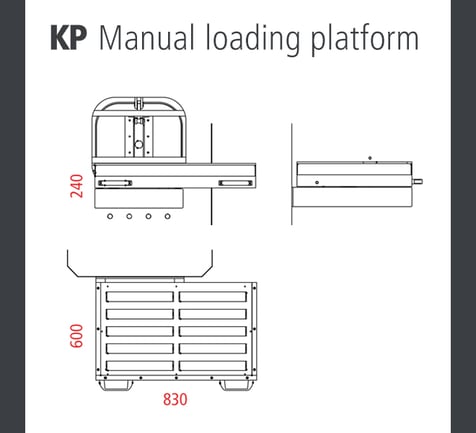

KP 30 metal washing systems are equipped with a stainless steel automatic or manual washing chamber door. The basket loading phase is manual with the help of a decentralised loading platform or with a simple trolley. Both are equipped with an idle roller conveyor.

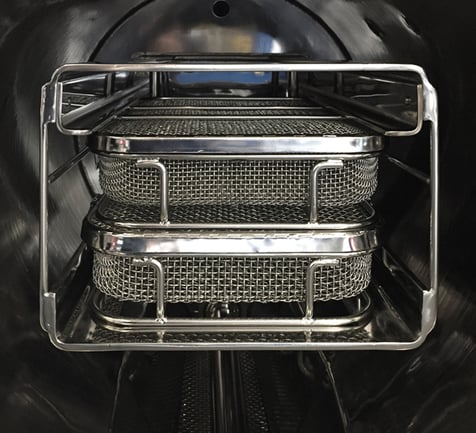

The system can handle 1 basket, with the possibility of integrating automatic load recognition.

All operations are managed by internally developed software, in compliance with Industry 4.0 standards.

All loading/unloading and washing operations are managed through a touch panel integrated on the washer with corresponding button panel or through an original IFP Europe totem with integrated touch monitor that allows for intuitive use of software developed by IFP Europe technicians, in compliance with Industry 4.0 standards.

Find out more about automations

Standard features

Stainless steel construction
Vacuum-proof systems
Variable turbulence spraying system
Vacuum pumps
Cryogenic abatement system
Shaving filter
Dual washing liquid tank
Touch screen control panel
Internet-based video-service

Available accessories

Ultrasound transducers
Additional filters

Personalisation

We offer tailor-made solutions. Each KP Kleen Power system can be customised to meet specific metal part washing needs and achieve production and quality objectives. Each system is configured to ensure high performance, reliability, and adaptability to metal washing processes.

Kiosk

Although managed as an accessory, the kiosk accompanies every KP Kleen Power system. Designed by IFP Europe, the interactive touchscreen kiosk is consistent with the KP Kleen Power line design. In addition to the analogue button panel, it includes a Simatic HMI touch panel and two USB ports. The touch panel can be integrated directly onto the washer or mounted on a panel with a telescopic arm. As an option, the kiosk can be equipped with an infrared reader for automatic workflow registration and scheduling.

Software

The washing processes of the KP Kleen Power line are managed by advanced software, developed and customised to meet specific customer needs. Compliant with Industry 4.0 standards, the software is accessible both remotely and via the Simatic HMI touch panel, which features an optimised graphical interface for easier use. This ensures efficient and intuitive control of washing processes.
