KP .WTR

VACUUM WASHERS

AQUEOUS SOLUTIONS

KP 50 WTR
KP 100 WTR
KP 150 WTR
KP 200 WTR

The KP WTR system is available in 50 - 100 - 150 - 200 versions, offering ideal solutions to meet any metal component washing requirements. Operating with aqueous solutions, it retains the advanced features of the KP Kleen Power system, including: vacuum treatment, custom-programmed washing cycles tailored to customer needs, remote function monitoring and assistance, a wide range of standard features and the ability to develop customised technical solutions.

The KP WTR system, designed for washing metal components with aqueous solutions, is particularly suitable for deoxidation, pickling, and removing contaminants or stains.

Thanks to its vacuum processing technology, operating at levels as low as 1 mbar, and an extensive selection of standard and optional features, the KP Kleen Power series offers the most advanced aqueous washing technology available on the market.

In the WTR version, the system delivers exceptional performance in the most demanding of applications, ensuring optimal results for high production volumes and complex contaminant management. The WTR system is suitable for deoxidation, pickling, and the removal of specific contaminants or stains.

In the WTR version, the system delivers excellent performance in deoxidation, pickling, and addressing specific contamination and staining requirements.

KP.WTR

Applications

Turned mechanical hardware
Heat exchangers
Precision mechanical hardware
Automotive
Die-casting
Sintered components
Bent items
Gears
Hydraulic components
Cutlery
Valves
Pots and pans
Fittings
Watches
Taps
Jewellery

The KP WTR Line stands out for its numerous strengths:

The KP Kleen Power system complies with Industry 4.0 standards, MOCA, ISO 16232, and VDA 19 regulations.

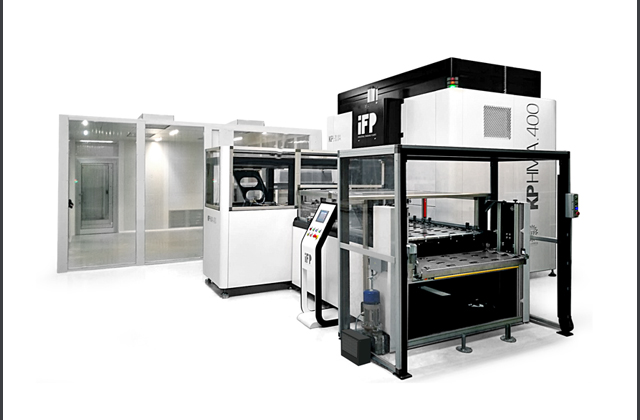

The KP Kleen Power metal washing system is easily configurable with additional accessories, such as: custom basket loading automation, robotised basket loading systems, additional drying systems for metal parts, protective coating application systems for washed components, and the option to integrate the system into a clean-room environment.
The washing system is constructed entirely from stainless steel (INOX).
Designed for easy access, ensuring safe and efficient routine maintenance.
Closed-loop system prevents direct contact with washing liquids.

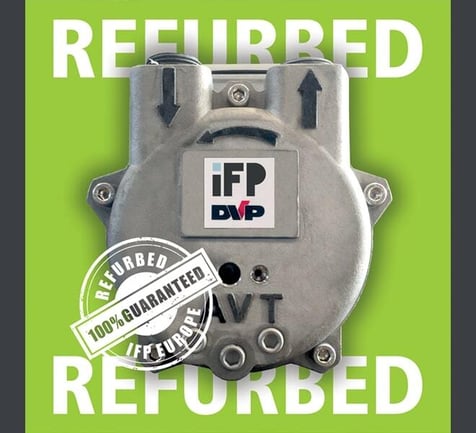

High-quality components, either original or refurbished, with IFP Europe warranty.
High-performance cleaning cycles, fully customisable with a tailor-made software system developed by IFP Europe experts.
No hazardous waste: Advanced filtration, purification, and stripping technology allows for the separation and recovery of oils, water, and metal microparticles (chips) from washed components.
Energy savings by means of optimised washing cycles.
No production downtime due to routine maintenance.
Remote monitoring and assistance available for system control and troubleshooting.

99% waste material recovery, 40% energy savings, and 95% reduction in cleaning product usage. Lower operational costs and significant economic benefits.

Load dimensions

Load weight

Encumbrance

Cycles/hour

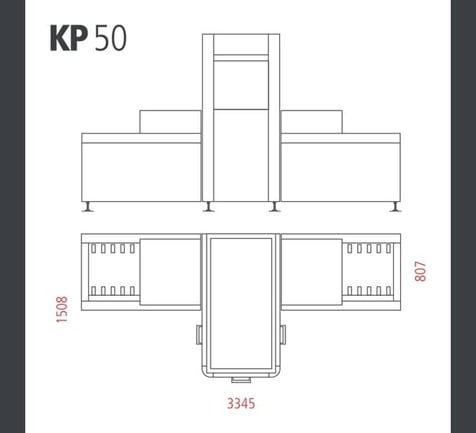

KP 50 WTR

Load dimensions

300 x 450 x 200h

Load weight

Encumbrance

2050 x 2000 x 3000h

Cycles/hour

4 – 6

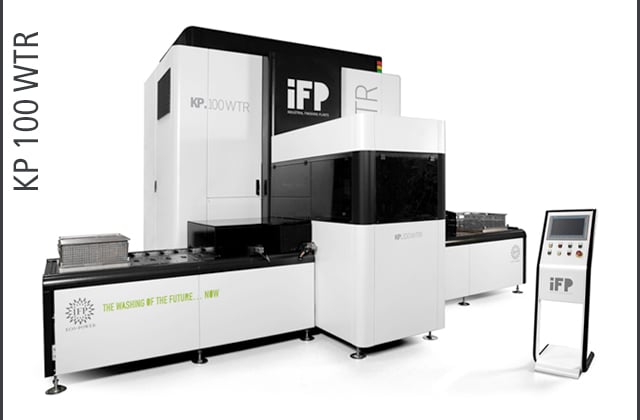

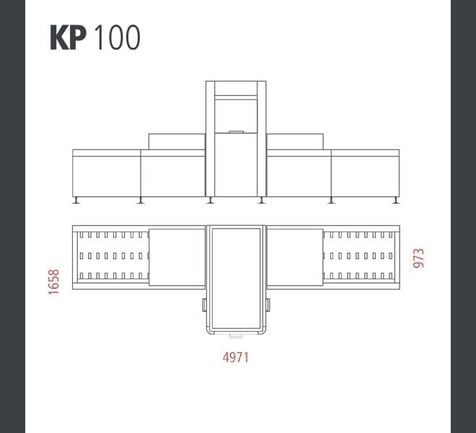

KP 100 WTR

Load dimensions

450 x 600 x 200h

Load weight

100

Encumbrance

2900 x 1900 x 3000h

Cycles/hour

4 – 6

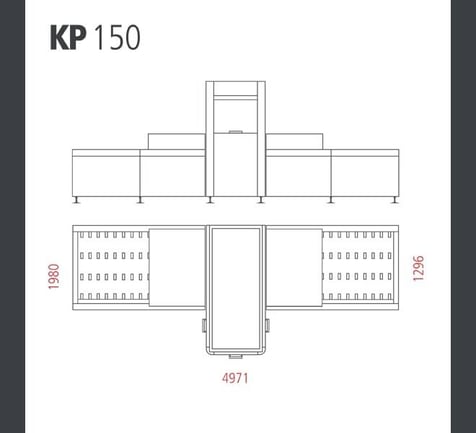

KP 150 WTR

Load dimensions

450 x 900 x 200h

Load weight

150

Encumbrance

3250 x 2300 x 3200h

Cycles/hour

4 – 6

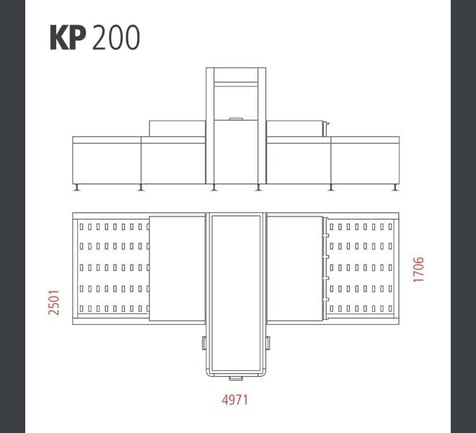

KP 200 WTR

Load dimensions

450 x 1200 x 200h

Load weight

200

Encumbrance

3250 x 2300 x 3200h

Cycles/hour

4 – 6

Available with manual and automatic loading options.

Find out more about automations

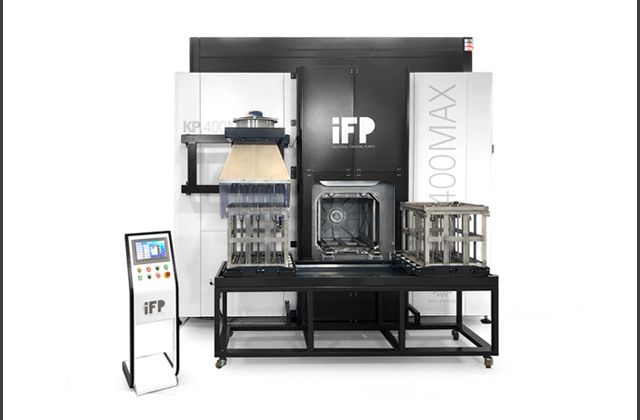

KP Kleen Power metal washing systems are designed to be configured with the "Protect" automation, a loading system that ensures practical basket management. The automation includes an automatic tray and cover that facilitate the loading phases of baskets. The system can handle 2 or 4 baskets simultaneously, with the possibility of integrating automatic load recognition.

All operations are managed by internally developed software, in compliance with Industry 4.0 standards.

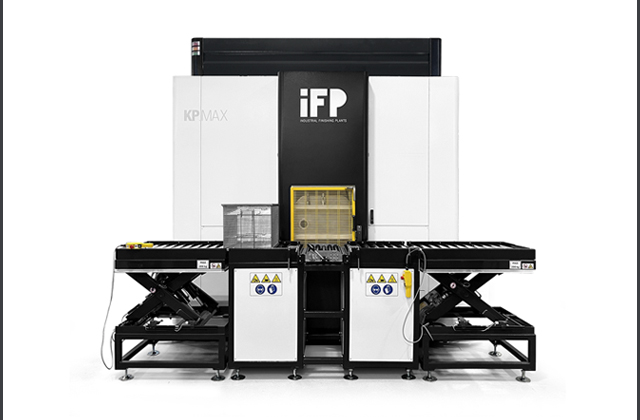

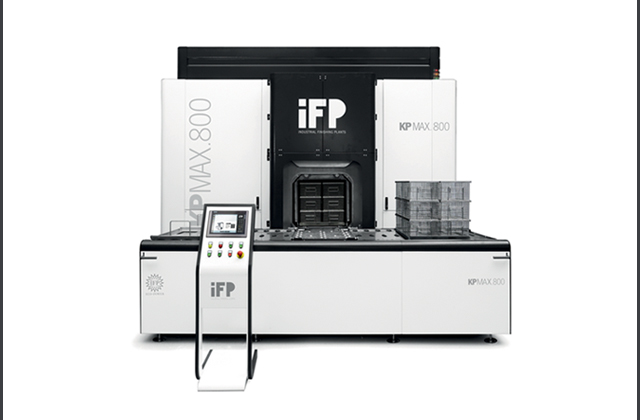

KP WTR 50 - 100 - 150 - 200 systems can also be equipped with a manual loading platform with an idle roller conveyor, a practical and innovative accessory developed by IFP Europe. The loading platform facilitates manual operations of 1+1 basket for the KP 50 WTR and 2+2 baskets for the KP 100 WTR, reaching up to the loading/unloading of 12 baskets at a time.

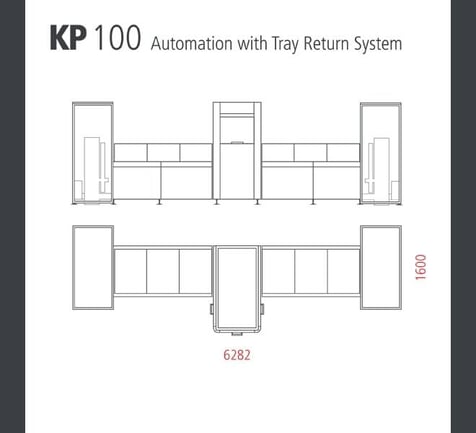

In the KP 100 WTR, KP 150 WTR, and KP 200 WTR versions, the 'Protect' automation ensures efficient basket handling, with the option of an automatic tray and cover, ensuring optimal control. Depending on the model, the automatic system can handle from 2 to 4 baskets simultaneously, with the possibility of integrating automatic load recognition.

All loading/unloading and washing operations are managed through an original IFP Europe totem with an integrated touch monitor that allows for intuitive use of software developed by IFP Europe technicians, in compliance with Industry 4.0 standards.

Find out more about automations

Stainless Steel Baskets - Modular System

The stainless steel wire basket system is designed and manufactured by IFP Europe to ensure maximum performance during the washing, decontamination, and drying of metal parts of various sizes. IFP Europe has adopted the "Fami" modularity, a system that facilitates storage and effectively solves every logistical problem, improving organisation and operational efficiency.

The baskets for versions 50 - 100 - 150 - 200 have been specifically designed by IFP Europe technicians to ensure maximum functionality in managing the preparation, loading/unloading, washing, and drying phases of metal components. Made with thick stainless steel wire, the baskets conform to FAMI modularity, a feature that facilitates storage and effectively resolves any logistical problem, improving operational efficiency.

Standard features

Stainless steel construction
Vacuum-proof systems
Variable turbulence spraying system
Vacuum pumps
Cryogenic abatement system
Sludge stripping distiller
Hermetic loading/unloading system for washing liquid
Washing liquid filtration
Dual washing liquid storage tanks
Touch screen control panel
Internet-based video-service

Available accessories

Ultrasound transducers
Third washing liquid tank
Protection agent application unit
Additional filtration units
Automatic load handling systems
Automatic load recognition systems

Personalisation

We offer tailor-made solutions. Each KP Kleen Power system can be customised to meet specific metal part washing needs and achieve production and quality objectives. Each system is configured to ensure high performance, reliability, and adaptability to metal washing processes.

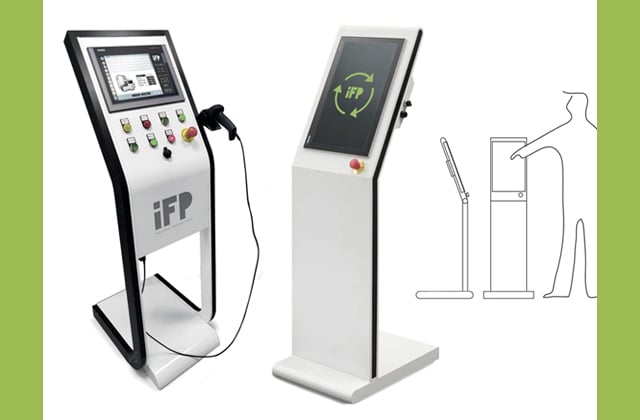

Kiosk

Although managed as an accessory, the kiosk accompanies every KP Kleen Power system. Designed by IFP Europe, the interactive touchscreen kiosk is consistent with the KP Kleen Power line design. In addition to the analogue button panel, it includes a Simatic HMI touch panel and two USB ports. The touch panel can be integrated directly onto the washer or mounted on a panel with a telescopic arm. As an option, the kiosk can be equipped with an infrared reader for automatic workflow registration and scheduling.

Software

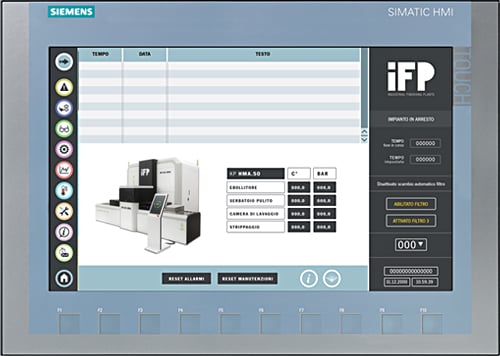

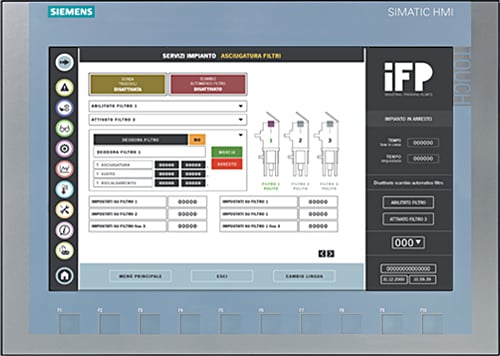

The washing processes of the KP Kleen Power line are managed by advanced software, developed and customised to meet specific customer needs. Compliant with Industry 4.0 standards, the software is accessible both remotely and via the Simatic HMI touch panel, which features an optimised graphical interface for easier use. This ensures efficient and intuitive control of washing processes.
